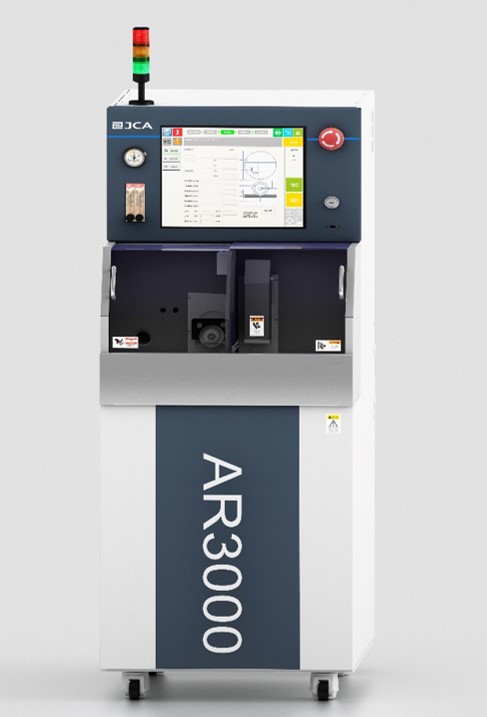

Main features:
Maximum effective processing size Six In inches, special work table and cutting frame can be customized.
▏Multi slice automatic cutting function;
▏Use advanced wizard touch screen manipulationGUIInterface；
▏The intelligent network control system has high reliability and high cutting efficiency.
Multi disc cutting workpiece with graphic function;? A variety of complex cutting functions;? Image automatic recognition and alignment function;? Automatic sharpening function;? Double rate microscope switching function;? Vacuum early warning function, vacuum pipeline water removal function;? Centralized refueling, rapid maintenance function;? Cutting, blade database management, operation log record.
Application:
Precision cutting of 6 inch silicon, ceramics, PCB board, EMC, quartz, glass, gallium arsenide, lithium niobate, and so on; widely used.IC integrated circuit, LED GaAs chip, diode, triode, LED package, NTC, MEMS, IC, photovoltaic, medical device, scintillation crystal and other industries.
Fault alarm and low air pressure, hydraulic pressure, servo worktable, servo, spindle drive, altimeter system, control system, operation chamber door safety lock, Water Leakage detection, monitoring, lack of vacuum spindle current protection function.
|
Maximum working size |
mm |
? 6 "or 150mm×150mm square |
||
|
Xaxis
|
Machinable range |
mm |
160 |
|
|
Feed speed input range |
mm/s |
0.1 - 500 |
||
|
Yaxis
|
Machinable range |
mm |
165 |
|
|
Single step intake |
mm |
0.0001 | ||
|
positioning accuracy |
mm |
0.003 within/160, 0.002 two with in/5 |
||
|
Zaxis
|
Effective travel |
mm |
35(?2 "When cutting the blade) |
|
|
Mobile resolution |
mm |
0.0005 |
||
|
Repetition precision |
mm |
0.001 |
||
|
Maximum cutting blade diameter for use |
mm |
? 58 |
||
|
Theta axis |
Maximum angle of rotation |
deg |
320 |
|
|
|
Angle accuracy |
″ |
15(direct drive motor) |
|
|

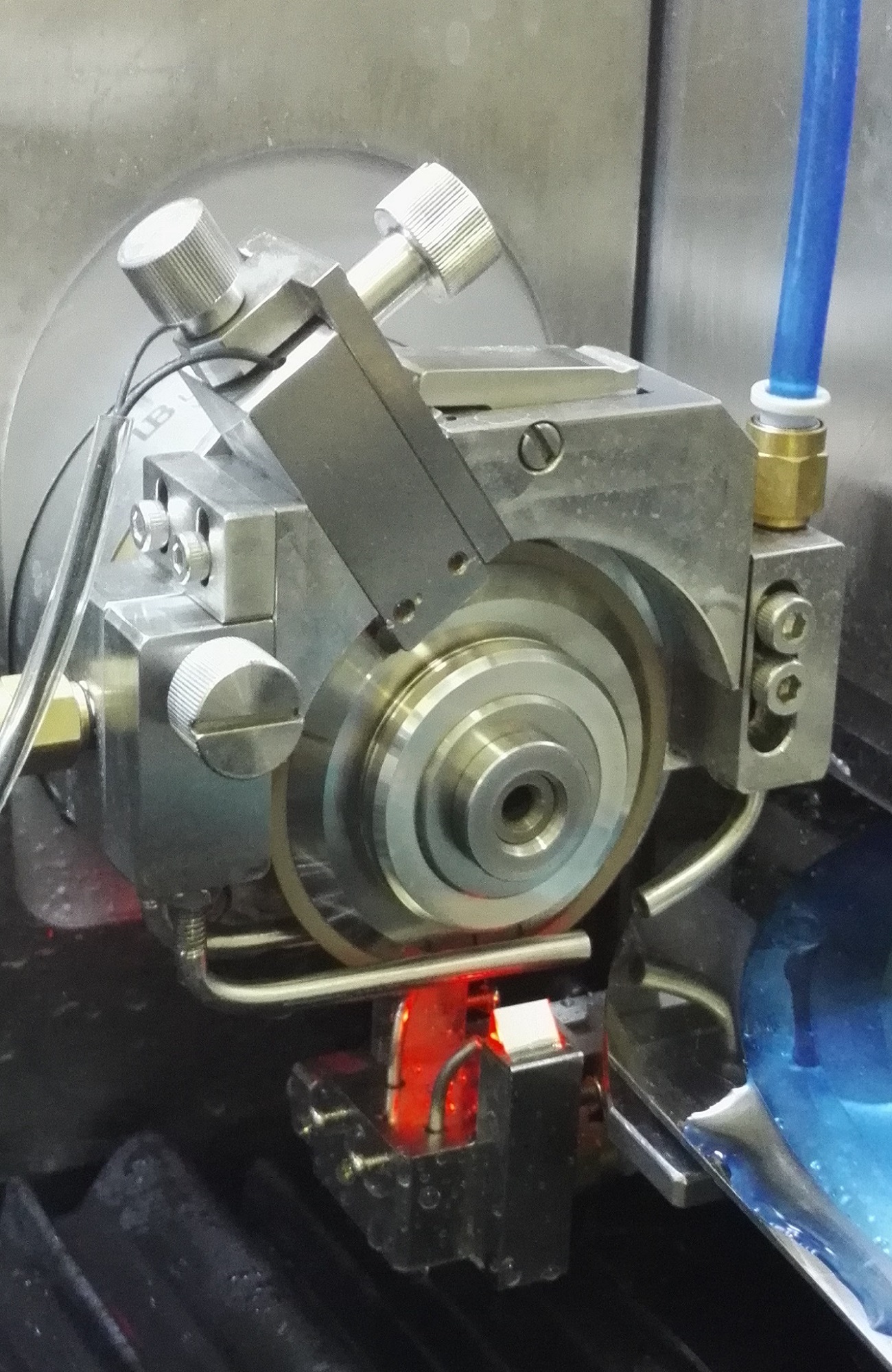

principal axis
|
Rated output power |
kW |
1.5 at 30,000 min-1 |
|
|
Rated torque |
N?m |
0.48 |
||
|
Rotation number range |
min-1 |
3,000 - 40,000（60,000*） |
||
|
The maximum framework to be used |
- |
6 inch |
||
|
Other Specifications
|
Power Supply |
v |
Three-phaseac380v±Ten％ In addition to the above, the transformer needs to be configured |
|
|
Power consumption |
Processing time |
kW |
0.5(reference value) |
|
|
Warmer time |
kW |
0.3(reference value) |
||
|
Max Power consumption |
kVA |
3.2 |
||
|
Compressed air supply pressure |
Mpa |
0.5 - 0.8 |
||
|
Maximum compressed air consumption |
L/min（ANR） |
185 |
||
|
Cutting water pressure |
Mpa |
0.2 - 0.4 |
||
|
Maximum consumption |
L/min |
4 |
||
|
Cooling water pressure |
Mpa |
0.2 - 0.4 |
||
|
Maximum consumption |
L/min |
0.5 ( in 0.3 MPa ) |
||
|
Exhaust air volume |
mThree/min |
0.5 |
||
|
Equipment size (W×D×H） |
mm |
600×900×1600 |
||
|
Equipment weight |
kg |
about 600 |
||
Conditions of use:
1. please set the machine in a 20~25 C environment (the range of fluctuation is within + 1 c); the indoor humidity is less than 80%, and there is no condensation.
2. please use the air pressure dew point below -15 C, the residual oil is 0.1ppm, the filtration degree is above 0.01um/99.5, clean compressed air.
3., please control the water temperature of the cutting water at room temperature of +2 C (within the range of + 1 c), and the water temperature of the cooling water is the same as that of the room temperature (the fluctuation range is controlled at + 1 degrees Celsius).
4. please avoid the gravity impact of the equipment and any vibration threat from the outside world. In addition, please do not install the equipment near the blower, the vent, the high temperature device and the oil producing device.
5. please install the equipment in a waterproof floor and a place with drainage treatment.
6. please do the operation in strict accordance with the instructions of the company's products.
