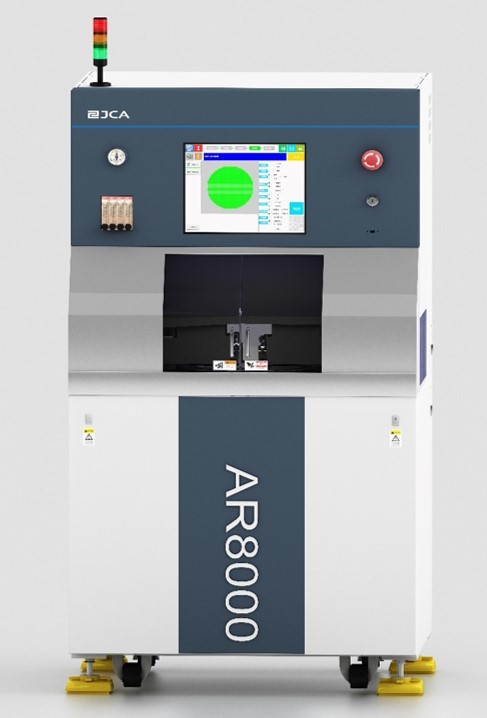

Main features:
▏The efficiency of double axis machining is 80% higher than that of single machine, and the maximum machining size is 310 x 310.
▏The special cutting frame and working table are selected, and the products of the large package substrate are cut by multi slice and double knife.
Main functional configuration:
? Two standard 1.8KW imported high-power air spindle, high torque spindle can be optional 2.2KW;
? Noncontact altimeter (NCS);
? Selection of blade breakage detection (BBD);
? The direct drive DD motor is adopted in the theta axis, which has high precision and fast speed.
? It has high speed image recognition function, multiple alignment mode, fast search for cutting path of machined objects, saving time and improving efficiency.
Application:
12 inch IC、PCB Ceramics, glass, lithium niobate, alumina, quartz Precision cutting of such materials; widely used. IC integrated circuit (8-12 inch)、LED Encapsulation, QFN、 DFN、BGA Optical opto electronic, communication And other industries.
? The optimization algorithm automatically realizes the optimal cutting mode of the opposite cutting and the same direction cutting.
? Multi piece processing;
? Complex machining: staircase cutting - two axes using different tools, axesOneSlotting knife, shaftTwoCut the knife to improve the cutting quality.
|
Maximum working size |
mm |
island 12 "or300mm×300mmsquare |
||
|
Xaxis
|
Machinable range |
mm |
Three hundred and ten |
|
|
Feed speed input range |
mm/s |
0.1 - 600 |
||
|
Yaxis 1&2
|
Machinable range |
mm |
Three hundred and ten |
|
|
Single step intake |
mm |
Zero point zero zero zero one |
||
|
positioning accuracy |
mm |
Zero point zero zero threewithin/310(single error)Zero point zero zero twowithin/5 |
||
|
Zaxis 1&2
|
Effective travel |
mm |
40(Use?2 "When cutting the blade) |
|
|
Mobile resolution |
mm |
Zero Point Zero Zero Zero Zero Five |
||
|
Repetition precision |
mm |
Zero point zero zero one |
||
|
Maximum cutting blade diameter for use |
mm |
shown 58 |
||
|
Theta axis |
Maximum angle of rotation |
deg |
Three hundred and sixty |
|
|
|
Angle accuracy |
″ |
Fifteen |
|
|
principal axis 1&2
|
Rated output power |
kW |
One point eight（One point five、Two point twoOptional)at 30,000 min-1 |
|
|
Rated torque |
N?m |
Zero point four eight |
||
|
Rotation number range |
min-1 |
Three thousand～Sixty thousand |
||
|
The maximum framework to be used |
- |
TwelveInch or300mm×300mmFrame frame |
||
|
Microscope system |
- |
Selection of two sets of identical or different multiplier microscopes |
||
|
Other Specifications
|
Power Supply |
v |
Three-phaseac380v±Ten％ In addition to the above, the transformer needs to be configured |
|
|
Power consumption |
Processing time |
kW |
One point three(reference value) |
|
|
Warmer time |
kW |
One point two(reference value) |
||
|
Max Power consumption |
kVA |
Four point eight |
||
|
Compressed air supply pressure |
Mpa |
0.5 - 0.8 |
||
|
Maximum compressed air consumption |
L/min（ANR） |
Two hundred and thirty-five |
||
|
Cutting water pressure |
Mpa |
0.2 - 0.4 |
||
|
Maximum consumption |
L/min |
Six |
||
|
Cooling water pressure |
Mpa |
0.2 - 0.4 |
||
|
Maximum consumption |
L/min |
One point five(in0.3MPaWhen) |
||
|
Exhaust air volume |
mThree/min |
One point five |
||
|
Equipment size (W×D×H） |
mm |
Nine hundred×Nine hundred×One thousand and nine hundred |
||
|
Equipment weight |
kg |
aboutNine hundred and fifty |
||
Conditions of use:
1. please set the machine in a 20~25 C environment (the range of fluctuation is within + 1 c); the indoor humidity is less than 80%, and there is no condensation.
2. please use the air pressure dew point below -15 C, the residual oil is 0.1ppm, the filtration degree is above 0.01um/99.5, clean compressed air.
3., please control the water temperature of the cutting water at room temperature of +2 C (within the range of + 1 c), and the water temperature of the cooling water is the same as that of the room temperature (the fluctuation range is controlled at + 1 degrees Celsius).
4. please avoid the gravity impact of the equipment and any vibration threat from the outside world. In addition, please do not install the equipment near the blower, the vent, the high temperature device and the oil producing device.
5. please install the equipment in a waterproof floor and a place with drainage treatment.
6. please do the operation in strict accordance with the instructions of the company's products.
