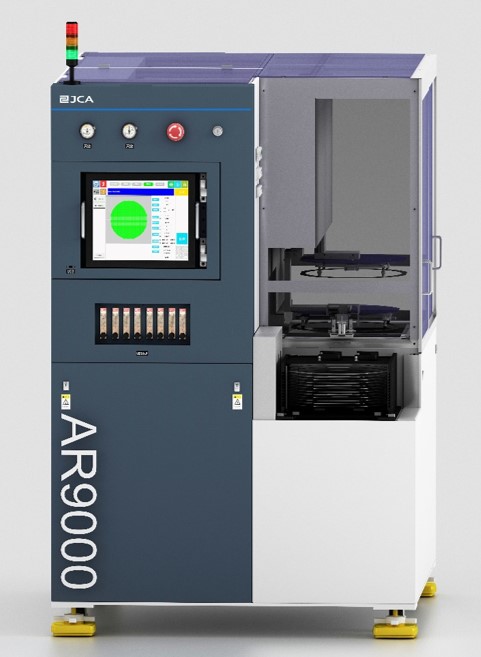

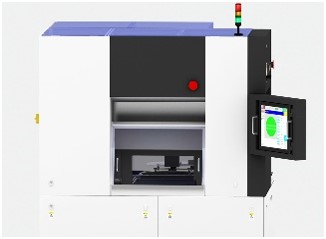

main features：
▏Fully automatic feeding and unloading, positioning, cutting, cleaning in one model;；
▏Double-axle assembly process, optimized reduction of axle spacing, processing efficiency than single-axle greatly improved；
▏The maximum processing size is 300 *300 mm. It can be customized for processing square components and has wider adaptability.
Main Function Configuration：
? Two 1.8KW imported high-power air spindles are standard, and 2.4KW high-torque spindle can be selected;
? Standard Non-contact Height Measurement (NCS) and Blade Breakage Detection (BBD) Functions；
?Automatic feeding and unloading transmission positioning, automatic cleaning and drying function；

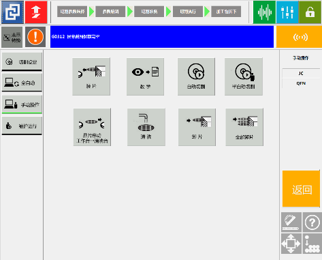

? With high-speed image recognition function, multiple alignment modes, fast search for cutting path of processed products, save time and improve efficiency.
Application :

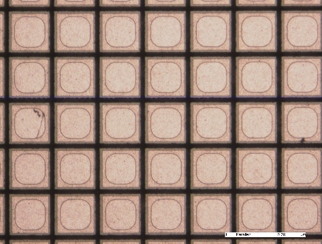

12 inch IC, PCB, ceramics, glass, lithium niobate, alumina, quartz and other materials for precision cutting; widely used in IC integrated circuits (8-12 inch), LED packaging, QFN, DFN, BGA, optical optoelectronics, communications and other industries.
Advanced functions :
Technical indicators:? Two-axis cutting technology, optimization algorithm to automatically realize the optimal cutting mode of opposite cutting and same cutting；
? Real-time controllable working state, process fault correction, improve operational reliability；
? Optimizing Workflow, Parallel Transmission and Cutting, Reducing Processing Time。
|
Maximum working size |
mm |
? 12"or 300mm×300mm square |
||
|
Xaxis
|
Machinable range |
mm |
310
|
|
|
Feed speed input range |
mm/s |
0.1 - 600 |
||
|
Yaxis 1&2
|
Machinable range |
mm |
310 |
|
|
Single step intake |
mm |
0.0001 | ||
|
positioning accuracy |
mm |
0.003 within/3100, 0.002 two with in/5 |
||
|
Zaxis
|
Effective travel |
mm |
40(?2 "When cutting the blade) |
|
|
Mobile resolution |
mm |
0.00005 |
||
|
Repetition precision |
mm |
0.001 |
||
|
Maximum cutting blade diameter for use |
mm |
? 58 |
||
|
Theta axis |
Maximum angle of rotation |
deg |
380 |
|
|
|
Angle accuracy |
″ |
15 |
|
|
principal axis
|
Rated output power |
kW |
1.8 (or 1.5、2.4) at 30,000 min-1 |
|
|
Rated torque |
N?m |
0.48 |
||
|
Rotation number range |
min-1 |
3,000 - 60,000 |
||
|
The maximum framework to be used |
- |
12 inch or 300mm×300mm square |
||
|
Other Specifications
|
Power Supply |
v |
Three-phaseac380v±Ten％ In addition to the above, the transformer needs to be configured |
|
|
Power consumption |
Processing time |
kW |
2.2(reference value) |
|
|
Warmer time |
kW |
1.8(reference value) |
||
|
Max Power consumption |
kVA |
6.8 |
||
|
Compressed air supply pressure |
Mpa |
0.5 - 0.8 |
||
|
Maximum compressed air consumption |
L/min（ANR） |
260 |
||
|
Cutting water pressure |
Mpa |
0.2 - 0.4 |
||
|
Maximum consumption |
L/min |
12.0 |
||
|
Cooling water pressure |
Mpa |
0.2 - 0.4 |
||
|
Maximum consumption |
L/min |
4.0 ( in 0.3 MPa ) |
||
|
Exhaust air volume |
mThree/min |
2.0 |
||
|
Equipment size (W×D×H） |
mm |
1,3000×1,500×1,860 |
||
|
Equipment weight |
kg |
about 1300 |
||
Conditions of use:
1. please set the machine in a 20~25 C environment (the range of fluctuation is within + 1 c); the indoor humidity is less than 80%, and there is no condensation.
2. please use the air pressure dew point below -15 C, the residual oil is 0.1ppm, the filtration degree is above 0.01um/99.5, clean compressed air.
3., please control the water temperature of the cutting water at room temperature of +2 C (within the range of + 1 c), and the water temperature of the cooling water is the same as that of the room temperature (the fluctuation range is controlled at + 1 degrees Celsius).
4. please avoid the gravity impact of the equipment and any vibration threat from the outside world. In addition, please do not install the equipment near the blower, the vent, the high temperature device and the oil producing device.
5. please install the equipment in a waterproof floor and a place with drainage treatment.
6. please do the operation in strict accordance with the instructions of the company's products.
